Screen Printing Machine

Name: Screen Printing Machine
Brand: UMRAO AUTOMATION PVT. LTD.
Price: 545000.0 INR
Availability: InStock

Price 545000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Screen Printing Machine Specification

Type
Screen Printing Machine

Material
MS

Capacity
900-1000 Impression/hour Kg/hr

Printing Speed
760 Impression/hour m/hr

Computerized
Yes

Automatic Grade
Semi-Automatic

Plate Type
Other

Print Direction
Uni-Directional

Ink Type
UV Curing Ink

Color Management
Other

Control System
PLC Control

Power
230V AC Volt (v)

Size
15"x20"

Width
15 Inch (in)

Weight (kg)
400 Kilograms (kg)

Dimension (L*W*H)
50x32x68 Inch (in)

Warranty
One Year

Screen Printing Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Nhava Sheva

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
4 Units Per Month

Delivery Time
2 Week

Sample Available
No

Packaging Details
wooden packing

Main Export Market(s)
North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America

Main Domestic Market
Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Tamil Nadu, Telangana, Uttar Pradesh, Uttarakhand, West Bengal, All India, South India, Central India, West India, North India, East India, Assam, Tripura, Pondicherry, Delhi, Haryana, Himachal Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Jammu and Kashmir, Madhya Pradesh

About Screen Printing Machine

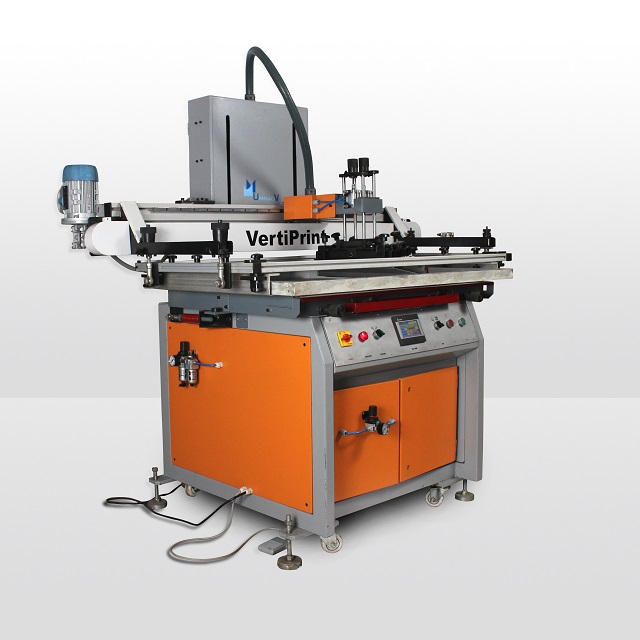

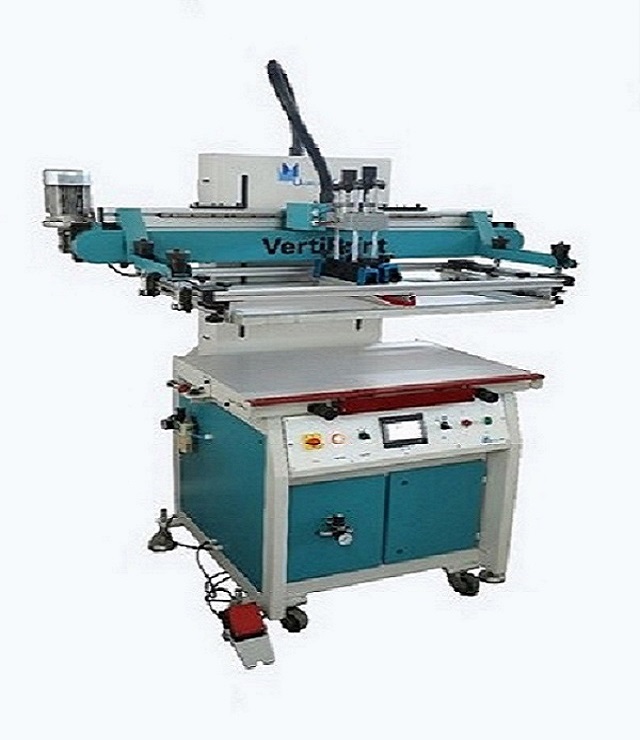

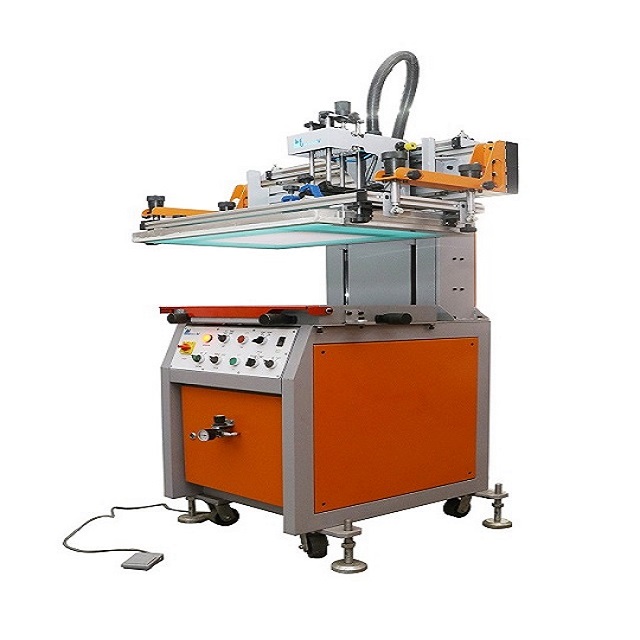

Screen Printing Machine 15 x 20

Umrao Automation Pvt Ltd introduces the fines and most flexible range of trouble free Semi-automatic flatbed Screen Printing Machine. The machine is easy to setup; easy to control gives maximum stability at full production speed with top quality prints and with accuracy required for high quality screen printing. Squeegee head on hardened steel shafts with linear bearing motion to give accurate and vibration free squeegee movement. Pneumatic measurable squeegee pressure adjustment

Applications : Flat surface printing on Ceramic Tiles Transfers, Printed Circuit Boards, Textile Transfers, Paper, Stickers, Metal Labels, Membrane Switch Printing, Commercial Screen Printing, etc.

Standard Features :

Adjustable squeegee & flood speed via AC geared motor (Pre - lubricated) coupled with AC frequency inverter.
Infinite variable and independent print and flood speeds adjustable from 0 to max speed.
Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion (IKO Japan)
Pneumatically adjustable squeegee & flood pressure, fine pressure adjustments with dial indicators.
Adjustable squeegee angle from 0 to 30 degree.
Aluminium extruded squeegee holder & coater for even pressure.
Bed movement for registration X, Y & rotary ( +-) 10 mm
Selectable Print Cycles Flood First & Then Print or Print First & then flood
Emergency Rod / Stop for safety of operator
Castor wheels for easy mobility
Printing operation by foot switch or automatic cycle with dwell time 0 - 10 sec.

Optional Features :

Auto take off system
PLC (Programmed Logic Controller) with man machine interface.

Technical Specification :

Verti Print - 1520	Verti Print - 1824	Verti Print - 2030
Print Area	15 Inch x 20 Inch (381mm x 508mm)	18 Inch x 24 Inch (457mm x 610mm)	20 Inch x 30 Inch (508mm x 762mm)
Screen Frame Size Max (OD)	24 Inchx 36 Inch (610mm x 914mm)	29 InchX 39 Inch (558mm x 990mm)	32 Inch x 44 Inch (813mm x 1118mm)
Screen Frame Size Min (OD)	18 Inch x 24 Inch (457mm x 610mm)	22 Inch x 26 Inch (558mm x 660mm)	26 Inch x 30 Inch (660mm x 762mm)
Vacuum Bed Size	23 Inch x 28 Inch (584mm x 711mm)	26 Inch x 32 Inch (660mm x 812mm)	28 Inch x 38 Inch (711mm x 965mm)
Bed Movement	+/- 10 mm	+/- 10 mm	+/- 10 mm
Substrate Thickness (Printable)	10 mm	10 mm	10 mm
Impressions / Hour	900 / Hour	900 / Hour	840 / Hour
Power Supply	230 V AC / 1 PH / 50 Hz	230 V AC / 1 PH/ 50 Hz	230 V AC / 1 PH / 50 Hz
Power Consumption	2 HP / 2.3 KW	3 HP / 2.3 KW	3 HP / 2.3 KW
Overall Dimensions	32 Inch (W) x 50 Inch (L) x 68 Inch (H)	37 Inch (W) x 55 Inch (L) x 68 Inch (H)	39 Inch (W) x 66 Inch (L) x 68 Inch (H)

Advanced Performance & Technology

Featuring up-to-date computerized PLC control and UV curing capability, this screen printing machine efficiently produces up to 1000 precise impressions per hour. It is well-suited for medium-to-large print runs, and its uni-directional movement and wide 15-inch print size provide flexibility for diverse printing requirements.

Durability and Ease of Operation

Built from tough MS material, the machine weighs 400 kilograms, ensuring stability during continuous use. Simple, semi-automatic controls strike a balance between manual versatility and automated ease, making it suitable for both experienced operators and those new to screen printing.

FAQs of Screen Printing Machine:

Q: How does the PLC control system enhance the screen printing process?

A: The PLC (Programmable Logic Controller) manages machine operations with precision, allowing for consistent print quality, streamlined workflow, and easy configuration of settings. This results in fewer errors and greater efficiency compared to manual systems.

Q: What types of materials can I print on using this machine?

A: This screen printing machine is suitable for various flat substrates, such as paper, plastics, and glass, within its print size of 15"x20". The use of UV curing ink allows for vibrant and durable prints on a range of surfaces.

Q: When should the machine undergo maintenance, and what does it involve?

A: Routine maintenance should be performed monthly, with checks on moving components, the PLC system, and ink delivery mechanisms. Regular cleaning and inspection help ensure optimal performance and prolong the machines lifespan.

Q: Where is this screen printing machine commonly used?

A: It is widely used in commercial print shops, promotional merchandise businesses, packaging industries, and manufacturing units across India and globally, wherever precise and efficient screen printing is essential.

Q: What is the process of using this semi-automatic screen printing machine?

A: Operators load substrates, set print parameters through the touch PLC control, and initiate the print cycle. The UV curing system quickly dries the ink, minimizing production time while maintaining high image quality.

Q: What are the main benefits of using a semi-automatic screen printing machine?

A: The semi-automatic design delivers a blend of manual control and automated efficiency, allowing for repeatable, high-speed output, minimized material waste, and lower production costs, while still providing adjustment for different print jobs.
